Media Format Guide
Uncertain about the dozens of media formats out there? Compare these images of some of the most common with the media in your collections. Click to enlarge the view. Still confused? Give us a call- we can help.
Obsolescence Ratings Explained:
Current: Format will be in active use over the next five years.
Vulnerable: A current but highly proprietary format.
Threatened: Well-maintained playback equipment or software still available; physical media itself is unstable, or has less integrity than other available formats, or a more popular or updated format will be replacing this one in a short period of time.
Endangered: Playback equipment or software available; manufacture of playback equipment has stopped; equipment/software support and/or stock becomes unavailable; production quality of available stock drops.
Critically endangered: Small population of aging playback equipment or software; little or no equipment engineering or manufacturing support; anecdotal evidence to indicate that fewer working machine playback-hours remain than total hours of media.
Extinct: Very few playback machines or software exist at specialist laboratories.

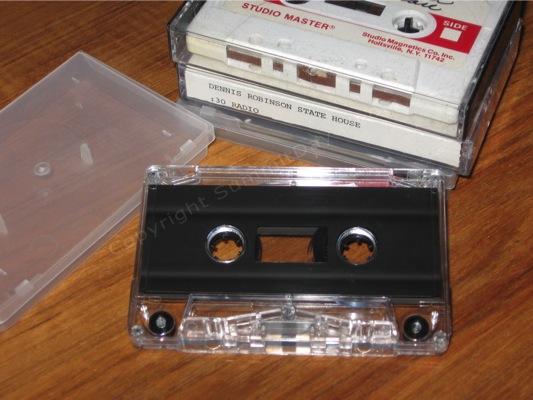

Audio, Analog,
"Compact Cassette";
Status: Threatened

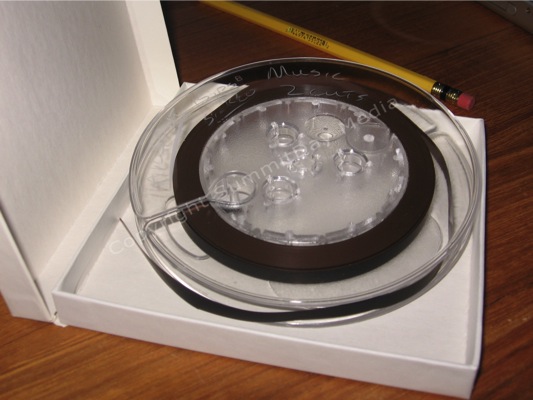

Audio, Analog
"1/4 reel-to-reel"
(spot length reel);
Status: Endangered

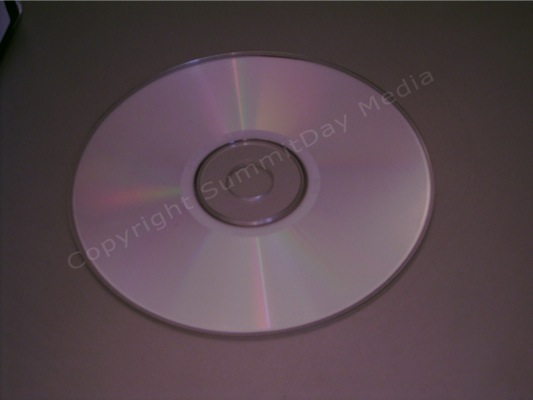

Audio, Digital,
"CD/Compact Disc";
Status: Current

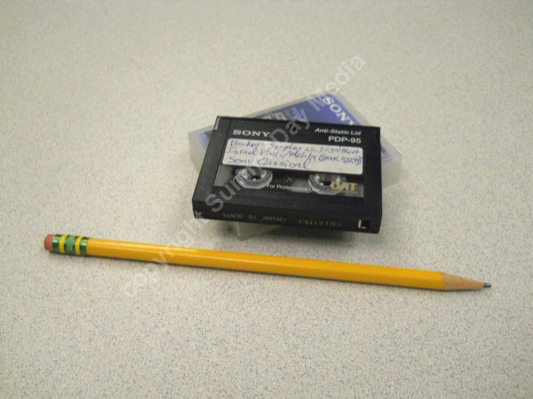

Audio, Digital,
"DAT/Digital Audio Tape";
Status: Threatened

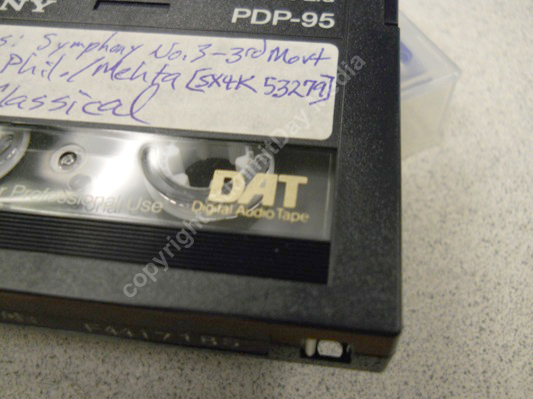

Audio, Digital,
"DAT/Digital Audio Tape";
Status: Threatened

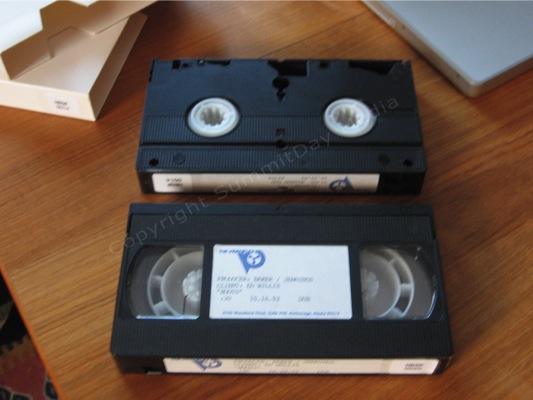

Video, Analog,
"VHS/Very High Standard";
Status: Threatened

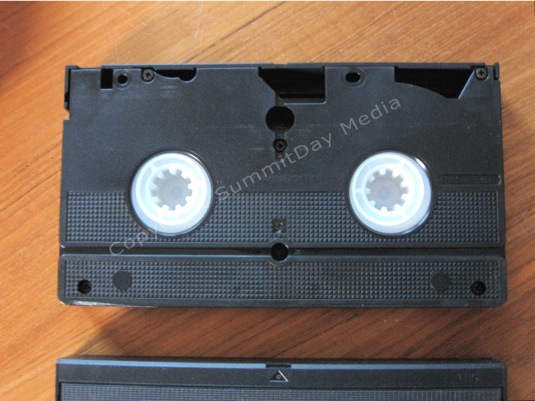

Video, Analog,
"VHS/Very High Standard";
Status: Threatened
(cassette bottom detail)

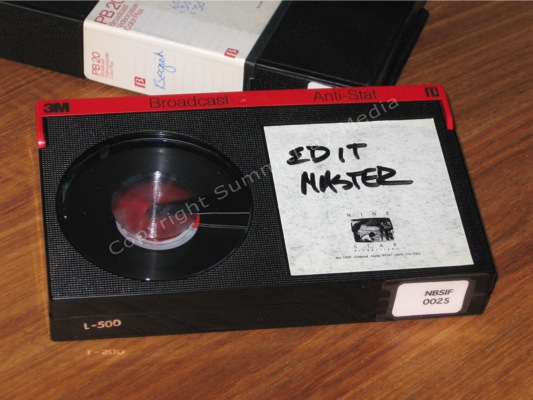

Video, Analog,
"Betacam (oxide)";
Status: Endangered

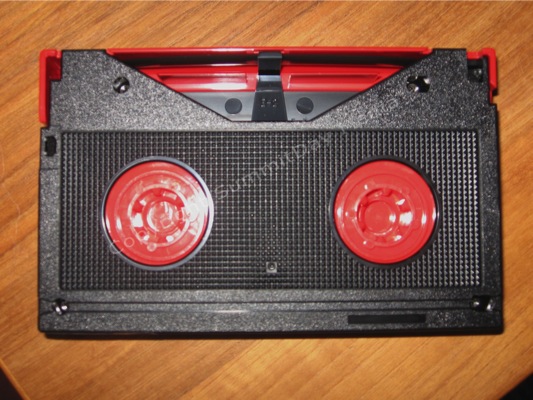

Video, Analog,
"Betacam (oxide)";
Status: Endangered
(cassette bottom detail)
Video, Analog,
"BetacamSP (metal)";
Status: Threatened

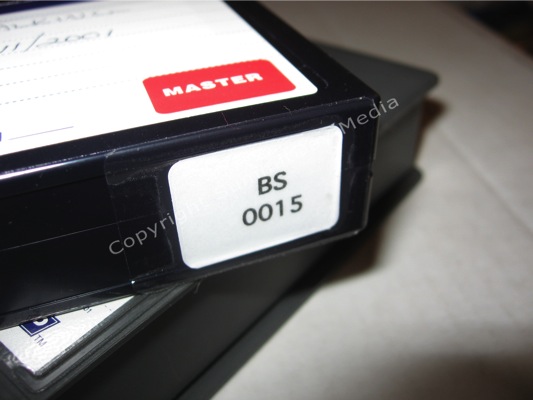

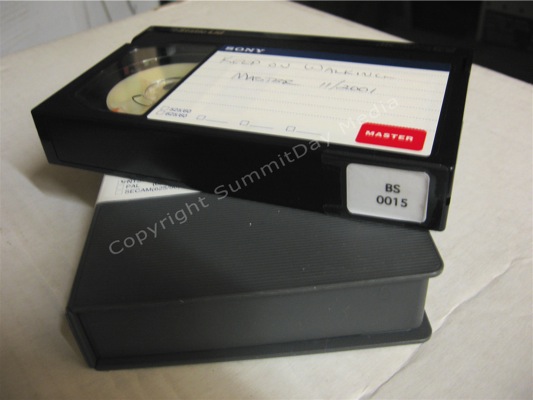

Video, Analog,
"BetacamSP (metal)";
Status: Threatened
(spine labeling detail)

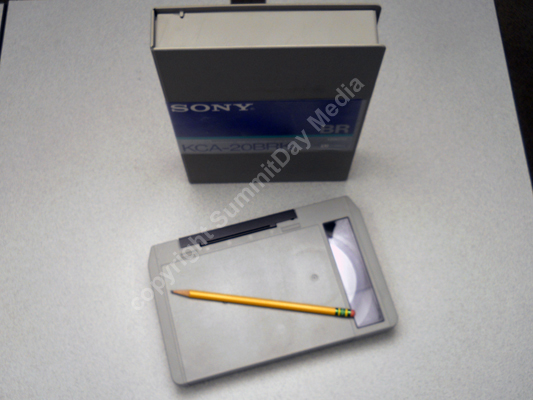

Video, Analog,
"Umatic/ 3/4 inch";
Status: Endangered

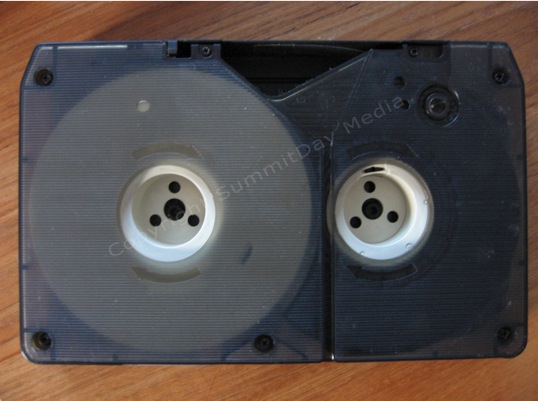

Video, Analog,
"Umatic/ 3/4 inch";
Status: Endangered
(cassette bottom detail)

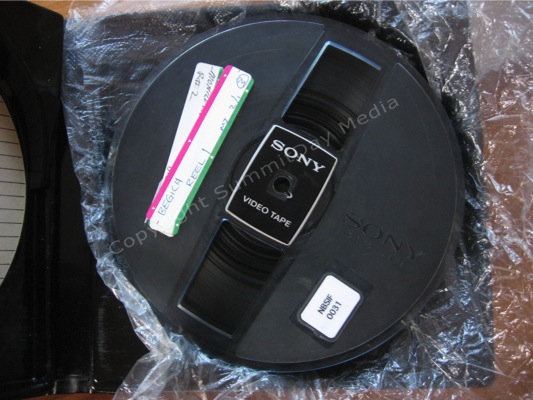

Video, Analog,
"EIAJ/ 1/2 inch";
Status: Critically Endangered

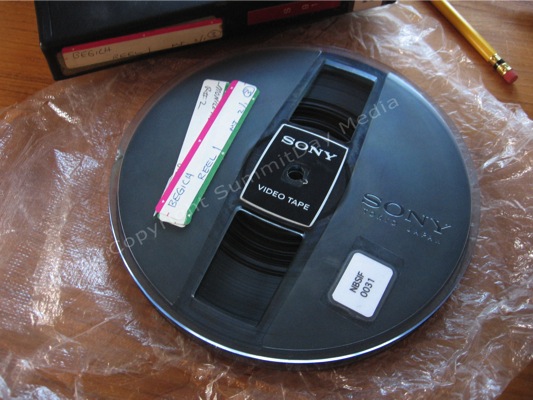

Video, Analog,
"EIAJ/ 1/2 inch";
Status: Critically Endangered
(alternate view)

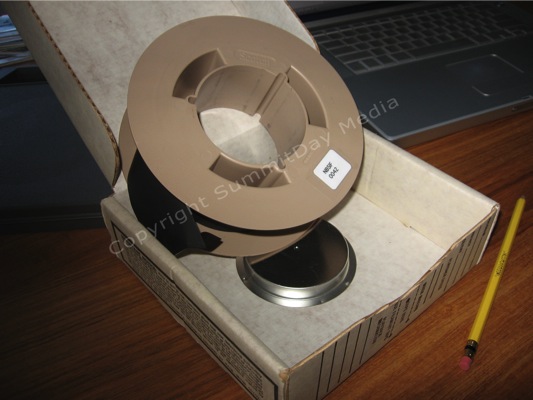

Video, Analog,
"Quad/ 2 inch"
(spot length reel);
Status: Extinct

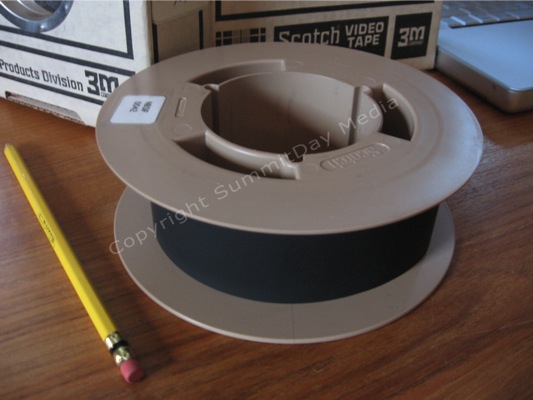

Video, Analog,
'
"Quad/ 2 inch"
(spot length reel);
Status: Extinct (detail)

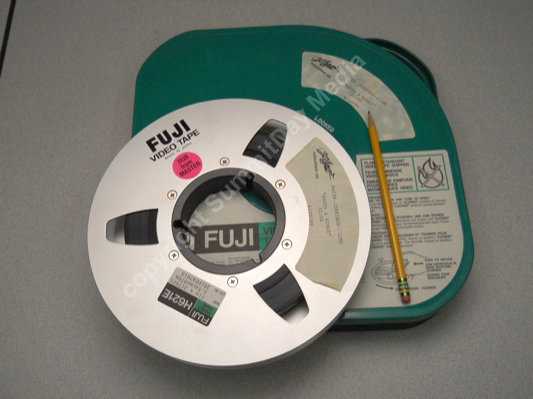

Video, Analog,
"1 inch/Type C"
(> 66 min reel);
Status: Endangered

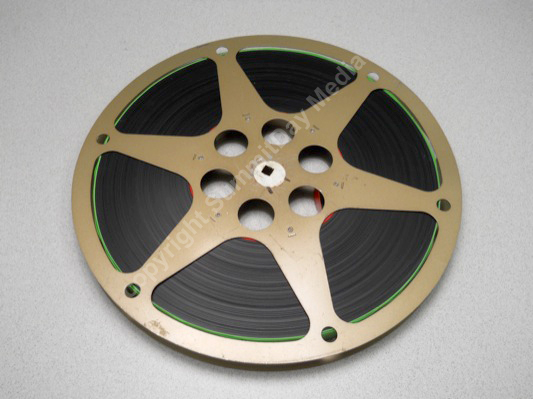

Film,
"16mm"
(Triacetate);
Status: Endangered

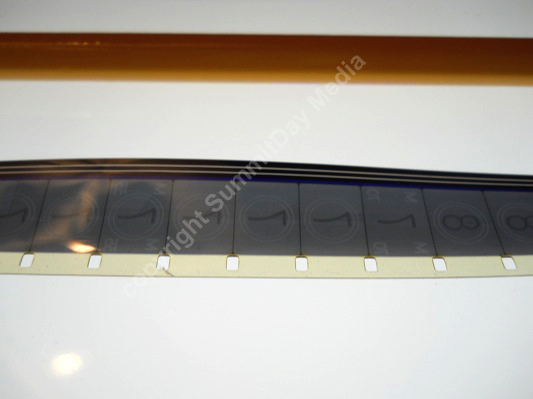

Film,
"16mm"
(Triacetate - Detail);
Status: Endangered

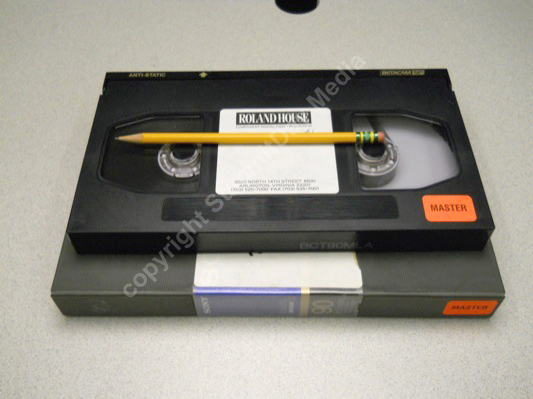

Video, Analog,
"BetacamSP"
(Large Shell);
Status: Endangered

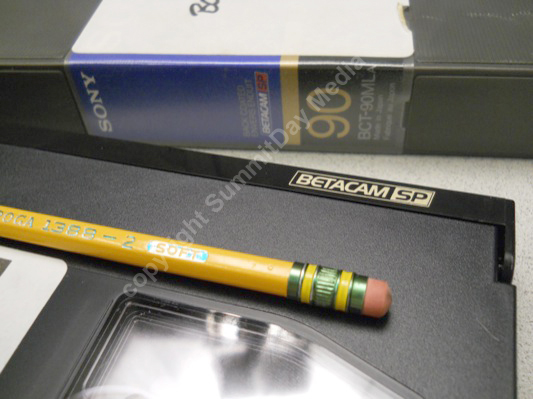

Video, Analog,
"BetacamSP"
(Large Shell - Detail);
Status: Endangered

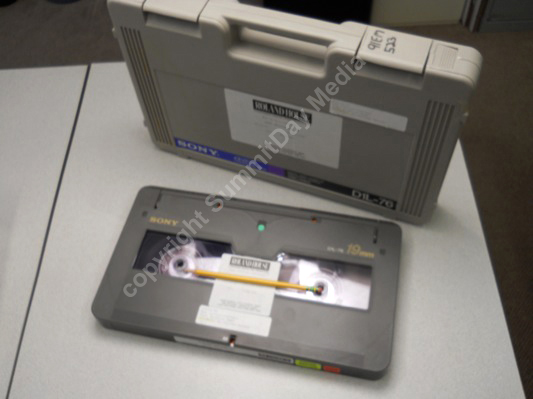

Video, Digital
"D1"
(76 min load);
Status: Critically Endangered

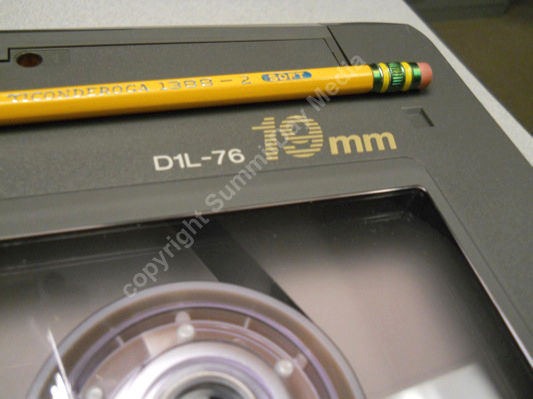

Video, Digital
"D1"
(76 min load - Detail);
Status: Critically Endangered

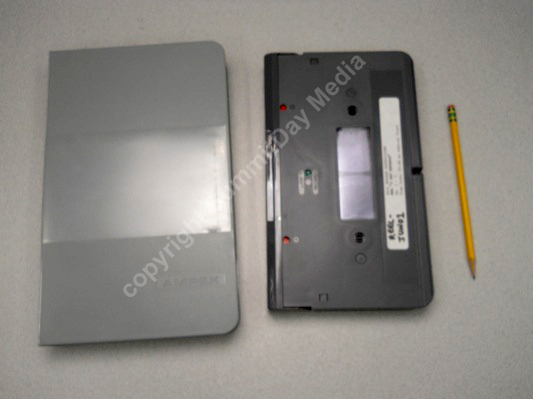

Video, Digital
"D2"
(64 min load);
Status: Endangered

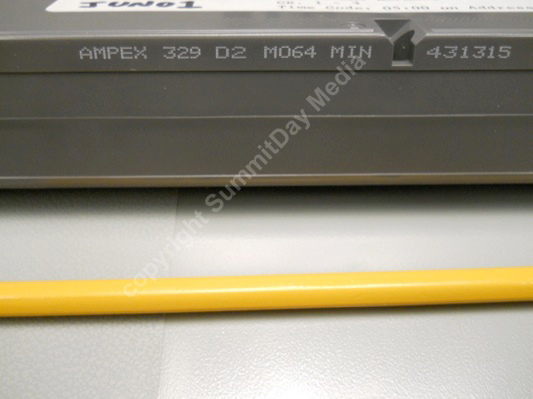

Video, Digital,
"D2"
(64 min load - Detail);
Status: Endangered

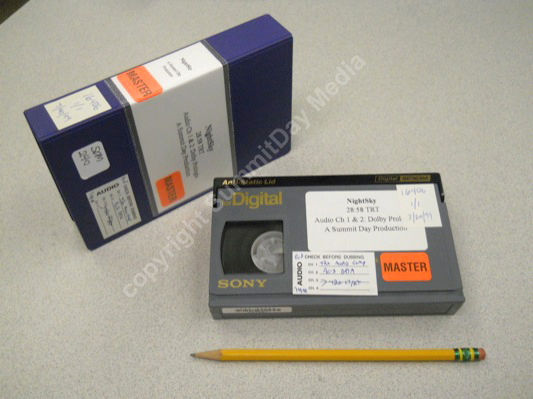

Video, Digital,
"Digital Betacam"
(aka "Digibeta");
Status: Current

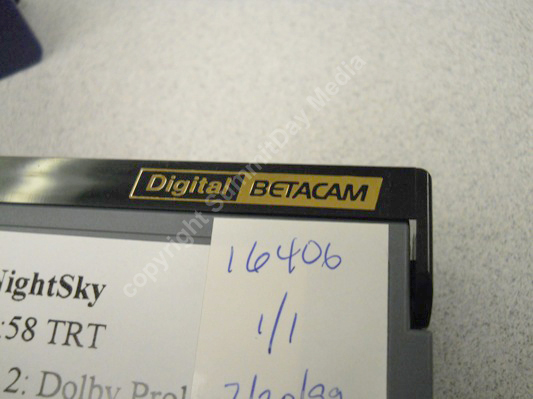

Video, Digital,
"Digital Betacam"
(aka "Digibeta" - Detail);
Status: Current

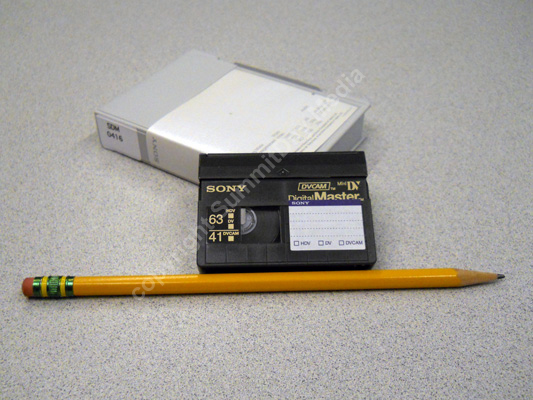

Video, Digital,
"DVCam"
Status: Current

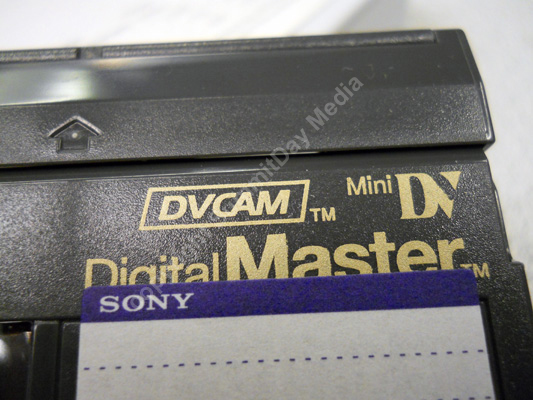

Video, Digital,
"DVCam"
(Detail);
Status: Current

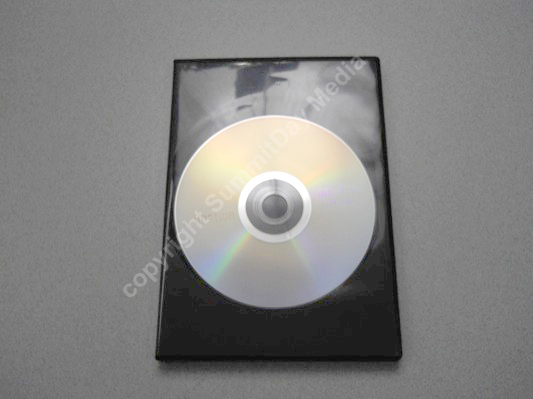

Video or Data, Digital
"DVD"
("+R" Disk);
Status: Current

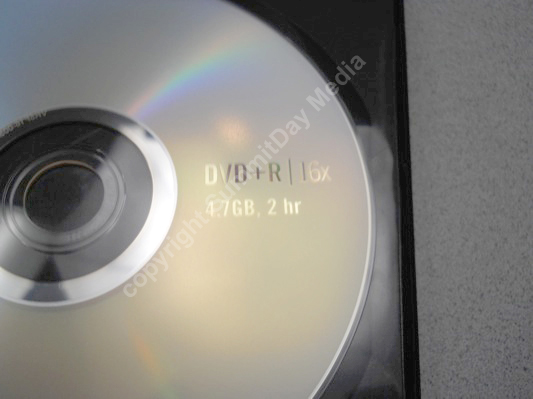

Video or Data, Digital,
"DVD"
("+R" Disk - Detail);
Status: Current

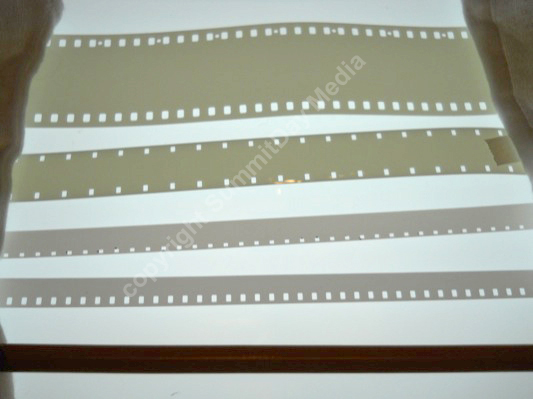

Film Gauge Sizes,
35mm/16mm/S8mm/R8mm
(top to bottom);
Status: Endangered

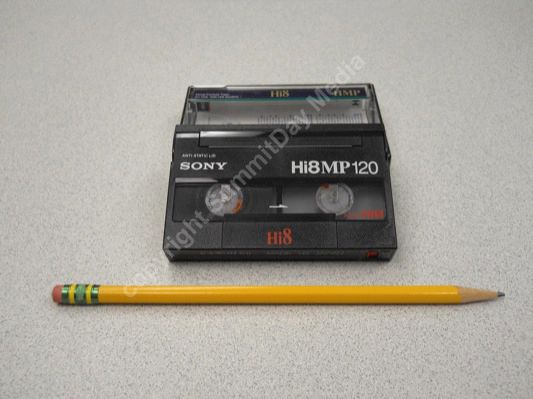

Video, Analog
"Hi8"
Status: Critically Endangered

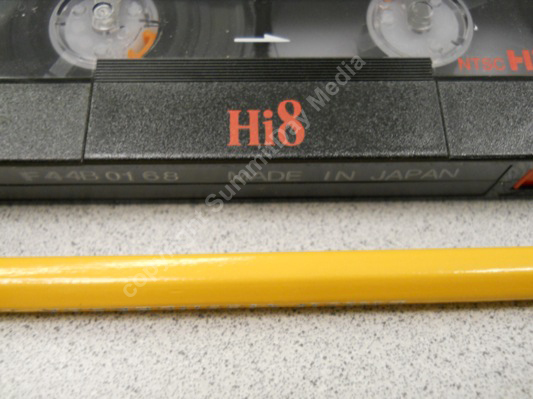

Video,
"Hi8"
(Detail);
Status: Critically Endangered

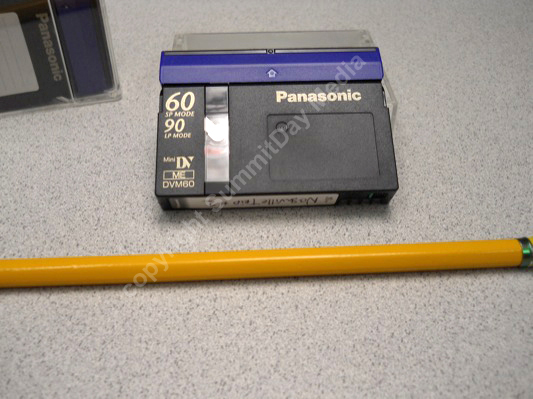

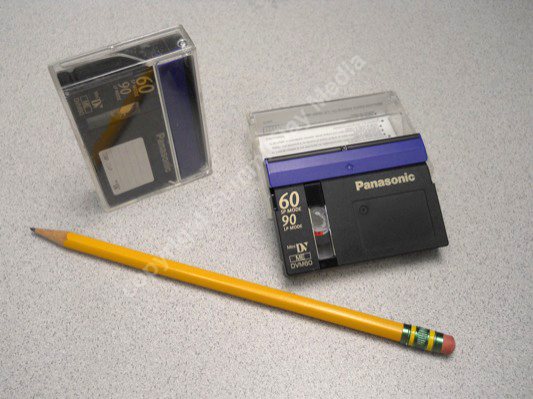

Video, Digital,
"MiniDV"
(aka "DV25");
Status: Current
Video, Digital,
"MiniDV"
(aka "DV25" - Detail);
Status: Current

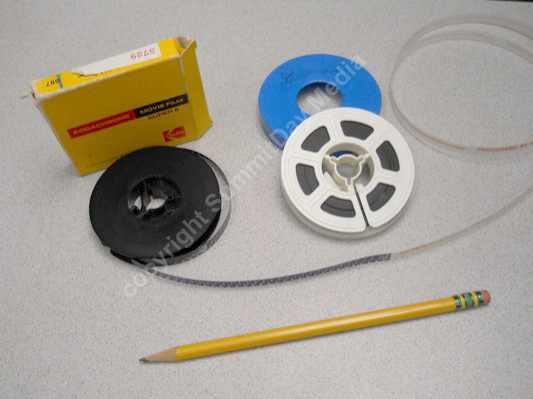

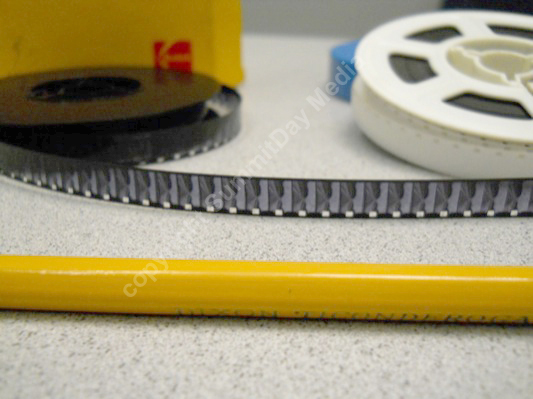

Film, Acetate,
"Super 8mm"
(50-ft reel);
Status: Endangered
Film, Acetate,
"Super 8mm"
(Detail);
Status: Endangered

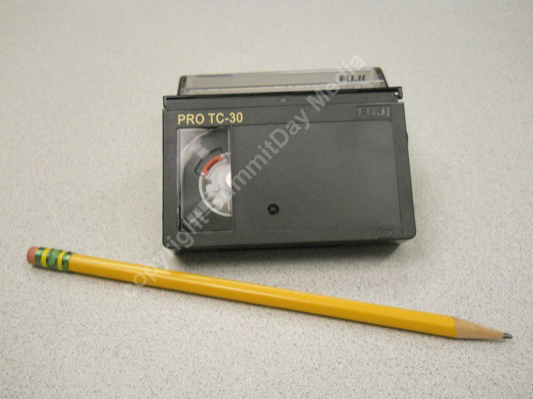

Video, Analog,
"SVHS-C"
(Super VHS Compact);
Status: Endangered

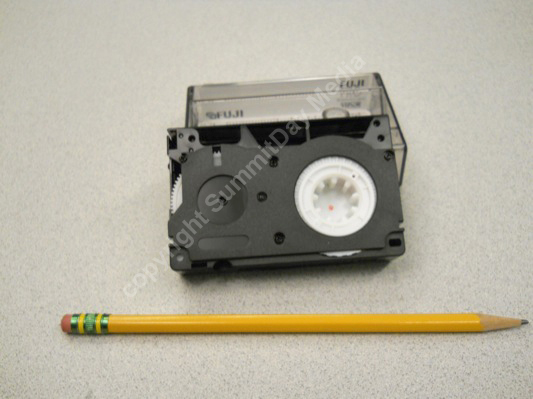

Video, Analog,
"SVHS-C"
(Super VHS Compact - Detail);
Status: Endangered
